[Gmod-help] GBrowse 2 xyplot not rescaling automatically

[POH Wan Ting]

Hi,



I have just installed GBrowse1.9971 and it seems that the density plots
will not be rescaled according (attached: densitytrack.png). I tried
using the same conf settings on another server with the old gbrowse and
it turns out well (attached: old_density.png). And according to
Bio::Graphics::Glyph::xyplot,

-max_score   Maximum value of the feature's "score" attribute
[Default: Calculated]





Conf file:

aggregators = profilePosDensity{intensity:FME715_density_positive}

 [PosDensity]

feature                                 = profilePosDensity

glyph          = xyplot

graph_type     = boxes

height         = 50

min_score      = 0

scale                                      = both

fgcolor        = red

bgcolor        = red

label          = 0

category       = FME715

citation       =

key            = FME715 Positive Density



gff file:

chr1    FME715_density_positive intensity       1       3003353 0
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3003354 3003403 1
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3003404 3015750 0
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3015751 3015780 1
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3015781 3027621 0
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3027622 3027655 1
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3027656 3077266 0
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3077267 3077316 1
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3077317 3116697 0
.       .       Density FME715_density_positive

chr1    FME715_density_positive intensity       3116698 3116729 2
.       .       Density FME715_density_positive



Thank you. Your help is very much appreciated.





Best Regards,

Wan Ting



---------------------------------

This email is confidential and may be privileged. If you are not the
intended recipient, please delete it and notify us immediately.

Please do not copy or use it for any purpose, or disclose its content to
any other person. Thank you.

---------------------------------

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://brie4.cshl.edu/pipermail/gmod-help/attachments/20090914/edfd0d2e/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

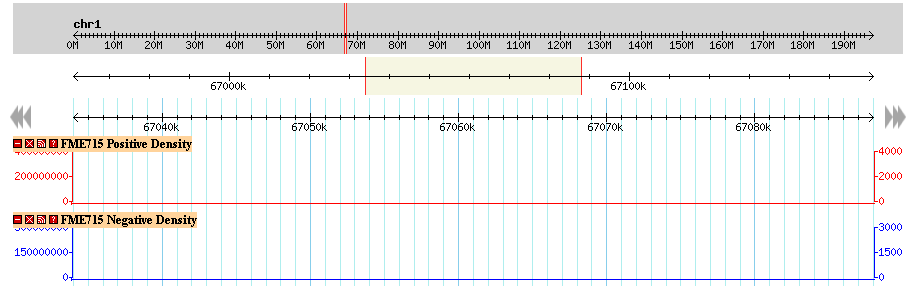

Name: densitytrack.PNG
Type: image/png
Size: 15102 bytes
Desc: densitytrack.PNG
URL: <http://brie4.cshl.edu/pipermail/gmod-help/attachments/20090914/edfd0d2e/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

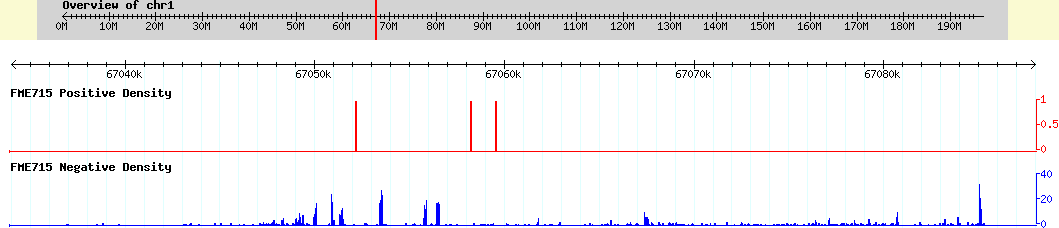

Name: old_density.PNG
Type: image/png
Size: 12777 bytes
Desc: old_density.PNG
URL: <http://brie4.cshl.edu/pipermail/gmod-help/attachments/20090914/edfd0d2e/attachment-0001.png>
