[Gmod-gbrowse] [Gmod-help] Re: wiggle_xyplot smoothing
Dan Bolser
dan.bolser at gmail.com
Thu Oct 7 16:44:41 EDT 2010
Hi Tim,
Sorry for the confusion, I'm comparing BigWig vs. SeqStore (scores),
not BigWig vs. Wig.
Thanks for the tip! I didn't know you could use regular glyph types
when using the bigwig adaptor... I guess I got confused by the wig
instructions.
Oh... I just noticed you changed the feature from 'summary' to
'region'... where can I read about those options?
Now that I try:
database = bigwig
feature = region
glyph = xyplot
graph_type = line

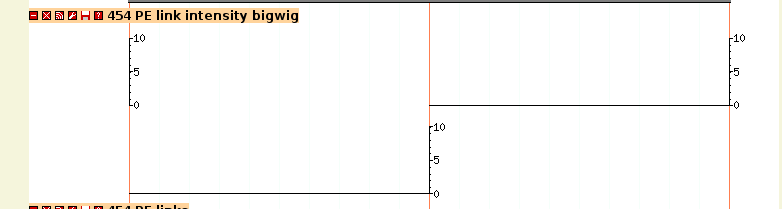

Things are getting pretty freaky... (see attached img of a 2kb
region)... ahh... its drawing a scale for each 'feature', one every kb
in my data... I tried scale = none, which removes the scales, but also
the data! Also, loading the track suddenly seems to make my laptop die
of CPU and network overload... switching back to summary (and
wiggle_xyplot) seems to fix that problem.
Well, the problem is no longer significant, and I can live with the
slight rounding that the bigwig track shows. The smoothing on the wig
track was initially obscuring the important peaks in my data, but I
found that by tweaking the span setting on the wig, I could get
results similar to what I'm now seeing with bigwig now.
Thanks for your help,
Dan.
# insane fun!
irc://irc.perl.org/#gmod
#not so bad!
irc://irc.freenode.net/#bioperl
On 7 October 2010 20:06, Timothy Parnell <Timothy.Parnell at hci.utah.edu> wrote:
> Hi Dan,
>
> I'm not sure I understand whether you're trying to compare the bigwig data to data stored in a wig file (referenced in a B:D:SF:Store database) or stored directly in the B:D:SF:Store database (as GFF features with scores).
>
> If you're trying to get the bigwig data to look identical to B:D:SF:Store source data, then you'll need to convince the bigwig db adaptor to return features (used by the xyplot glyph), and not the statistical summary that wiggle_xyplot glyph expects. Set the following
> database = bigwig_source_database
> feature = region
> glyph = xyplot
> graph_type = line
> group_on = type
>
> If you're instead trying to get the bigwig source data to look like wig source data, then I'm stumped as to why they look different. You're using wiggle_xyplot glyph for both, then, right? The arguments should be identical for both, with the exception of database and feature.
>
>
> Tim
>
>
>
>
> On 10/7/10 10:04 AM, "Dan Bolser" <dan.bolser at gmail.com> wrote:
>
> On 2 June 2010 21:31, Lincoln Stein <lincoln.stein at gmail.com> wrote:
>> Sorry you've had such a miserable time of it. I am hoping to throw out
>> Bio::Graphics::Wiggle entirely and replace it with a pure-perl
>> implementation of Bio::DB::BigWig. The naive storage system used in BGW just
>> doesn't work well across large regions. I recommend Bio::DB::BigWig if at
>> all possible.
>
> I didn't immediately find information on how to configure GBrowse to
> use Bio::DB::BigWig, so here is my config (I came here because I was
> seeing a similar smoothing problem, which is not yet fully resolved):
>
> Under the [GENERAL] section:
>
> database = basic
>
> # see '[basic:database]' below
>
> #db_adaptor = Bio::DB::SeqFeature::Store
> #
> #db_args = -adaptor DBI::mysql
> # -dsn www-potato:my.mysql.host
> ## -namespace gb_pot_agp
> # -user me
> # -pass secret
>
>
> Just before the [TRACK DEFAULTS] section:
>
> [basic:database]
> db_adaptor = Bio::DB::SeqFeature::Store
>
> db_args = -adaptor DBI::mysql
> -dsn www-potato:my.mysql.host
> # -namespace gb_pot_agp
> -user me
> -pass secret
>
> [bigwig:database]
> db_adaptor = Bio::DB::BigWig
>
> db_args = -bigwig '/path/to/my/bigwig_file.bw'
>
> [clonesLink_bigwig]
> database = bigwig
> feature = summary
> glyph = wiggle_xyplot
> graph_type = line
> bgcolor = black
> fgcolor = black
> height = 50
> min_score = 0
> max_score = 10
> scale = right
> category = Link
> key = finally
>
>
> I think the feature has to be 'summary', so I'm not sure if you can
> have more than one track per database.
>
>
> I'm still seeing differences between the track produced by the BigWig
> database adaptor and the track produced using the SeqFeature::Store
> database adaptor, unlike the situation reported above. For this
> reason, I'm not sure if I set the step and span options correctly...
> here is a sample of the GFF / WIG:
>
>
> chr04 dundee link intensity 1 1000 0 . . Name=Exhaust
> chr04 dundee link intensity 1001 2000 1 . . Name=Exhaust
> chr04 dundee link intensity 2001 3000 1 . . Name=Exhaust
>
>
> track type=wiggle_0 name='link intensity' description='Exhaust'
> fixedStep chrom=chr04 start=1 step=1000 span=1000
>
>
> Attached is an image to confirm the (slight) difference in smoothing
> behaviour of the two resulting tracks.
>
> Cheers,
> Dan.
>
>
> # fun for everyone!
> irc://irc.perl.org/#gmod
>
> #also good!
> irc://irc.freenode.net/#bioperl
>
>
>> Lincoln
>>
>> On Wed, Jun 2, 2010 at 3:26 PM, Timothy Parnell
>> <Timothy.Parnell at hci.utah.edu> wrote:
>>>
>>> Hi Dave,
>>>
>>> I identified the source of the problem and possible workarounds/fixes.
>>>
>>> The problem stems from the formatting of my wig file. The wig file I am
>>> using is a variable step wig file that contains the microarray data value
>>> recorded at just the probe's midpoint. However, when it is converted to the
>>> binary file, it apparently is converted to a 1 bp fixed step, where all the
>>> intervening positions are undef. If I use a custom script to pull data out
>>> of the wib file, it is in 1 bp increments, with undef values at all
>>> positions intervening the real values.
>>>
>>> The problem comes when the zoom level (in bp) exceeds the pixel resolution
>>> of the track png. The image renderer apparently pulls out a data value at
>>> every n'th position from the wig file across the region. If the value at
>>> that position is undef, it simply extends the value from the previously
>>> found position. This essentially gives the appearance of smoothed data, as
>>> it may only come across a real value every so often across the region.
>>>
>>> There are two workarounds, which I have confirmed works for me. The first
>>> is to generate a new wig file at 1 bp fixed step by interpolating the values
>>> between the real number positions. The second is to use Lincoln's new
>>> adaptor, Bio::DB::BigWig, which fundamentally works differently by pulling
>>> out features with scores, rather than assuming a fixed 1 bp step interval.
>>> The BigWig adaptor produces a track indistinguishable from a track produced
>>> using the SeqFeature::Store database adaptor.
>>>
>>> The fix would be in the appropriate Graphics adaptor
>>> (wiggle_xyplot.pm????) to first toss out all the undef values prior to down
>>> sampling for rendering the track.
>>>
>>> I hope this helps.
>>> Tim
>>>
>>>
>>> On 6/1/10 5:35 PM, "Dave Clements, GMOD Help Desk" <help at gmod.org> wrote:
>>>
>>> Hi Timothy,
>>>
>>> I submitted a bug on this. See
>>>
>>>
>>> https://sourceforge.net/tracker/?func=detail&aid=3010143&group_id=27707&atid=391291
>>>
>>> Dave C.
>>>
>>> On Tue, May 25, 2010 at 3:10 PM, Timothy Parnell
>>> <Timothy.Parnell at hci.utah.edu> wrote:
>>> Hi Dave,
>>> Yes, I forgot to mention this in my first email. I'm using the latest
>>> relevant distributions available from CPAN.
>>>
>>> GBrowse-2.08
>>> Bio-Graphics-2.09
>>> BioPerl-1.6.1
>>>
>>> I have not tried checking anything out from the live developer versions.
>>> Should I try those?
>>>
>>> Tim
>>>
>>>
>>>
>>>
>>> On 5/25/10 3:54 PM, "Dave Clements, GMOD Help Desk" <help at gmod.org> wrote:
>>>
>>> Hi Timothy,
>>>
>>> I'm pretty sure this is a a bug. I know the wig rendering code has been
>>> touched in the last year or so. What version of GBrowse is this happening
>>> in? I'm hopeful that upgrading will solve this problem.
>>>
>>> Dave C.
>>>
>>> On Mon, May 24, 2010 at 9:02 AM, Timothy Parnell
>>> <Timothy.Parnell at hci.utah.edu> wrote:
>>> Hello,
>>>
>>> I'm having issues with the smoothing of wiggle data when rendering a track
>>> in GBrowse. Specifically, turning smoothing off.
>>>
>>> I have the same high resolution microarray data loaded both into a
>>> SeqFeature::Store database as well as binary wiggle files (via the
>>> wiggle2gff3.pl <http://wiggle2gff3.pl> <http://wiggle2gff3.pl> script).
>>> Viewing tracks from each data source gives vastly different graphs (see
>>> attached image). It's most apparent with the histogram plot. It appears that
>>> the wiggle track is automatically binning the data to smooth it. However, I
>>> anticipate the "noisy" data as seen in the database track, and it would be
>>> nice to see it in the wiggle track.
>>>
>>> I have set the smoothing option to "none" in the wiggle track
>>> configuration, but GBrowse appears to be ignoring this line. The smoothing
>>> occurs at zoom levels above 2 kb, whereas at 1 kb or below the tracks are
>>> the same. I can pull the data back out of the database and wiggle files
>>> (using either custom scripts or downloading track data from GBrowse) and the
>>> data is identical (within expectations of converting the data to 8-bit
>>> dynamic range).
>>>
>>> Is there a way to control the semantic automatic smoothing of wiggle data?
>>> Is my configuration set incorrectly? Or is this a bug?
>>>
>>> My track conf is below:
>>>
>>> [sample_chip_wig1]
>>> feature = deg_con_ratio_mono1_wig
>>> glyph = wiggle_xyplot
>>> graph_type = histogram
>>> height = 50
>>> scale = left
>>> label = 0
>>> autoscale = global
>>> bicolor_pivot = zero
>>> pos_color = blue
>>> neg_color = red
>>> smoothing = none
>>> smoothing_window = 1
>>> key = sample_chip_wig1
>>>
>>> [sample_chip_db1]
>>> feature = deg_con_ratio_mono1_244k
>>> glyph = xyplot
>>> graph_type = histogram
>>> height = 50
>>> scale = left
>>> fgcolor = black
>>> min_score = -2
>>> max_score = 2
>>> label = 0
>>> group_on = display_name
>>> key = sample_chip_db1
>>>
>>> Thanks for any assistance
>>>
>>> --
>>>
>>> Timothy J Parnell, PhD.
>>> Research Associate
>>> Howard Hughes Medical Institute
>>> Department of Oncology
>>> Huntsman Cancer Institute
>>> University of Utah
>>> Salt Lake City, UT 84112
>>>
>>>
>>>
>>> ------------------------------------------------------------------------------
>>>
>>>
>>> _______________________________________________
>>> Gmod-gbrowse mailing list
>>> Gmod-gbrowse at lists.sourceforge.net
>>> https://lists.sourceforge.net/lists/listinfo/gmod-gbrowse
>>>
>>>
>>>
>>>
>>>
>>> ------------------------------------------------------------------------------
>>>
>>> _______________________________________________
>>> Gmod-gbrowse mailing list
>>> Gmod-gbrowse at lists.sourceforge.net
>>> https://lists.sourceforge.net/lists/listinfo/gmod-gbrowse
>>>
>>>
>>>
>>
>>
>>
>> --
>> Lincoln D. Stein
>> Director, Informatics and Biocomputing Platform
>> Ontario Institute for Cancer Research
>> 101 College St., Suite 800
>> Toronto, ON, Canada M5G0A3
>> 416 673-8514
>> Assistant: Renata Musa <Renata.Musa at oicr.on.ca>
>>
>> ------------------------------------------------------------------------------
